Eimkeith 80 Series Land Cruiser Panhard Correction Kit (PCK)

The Original PCK® - Weld-on bracket kit which correct the panhard bar (AKA trackbar) angle on 2-5" of lift.

The Eimkeith Panhard Correction Kit returns the panhard bar to horizontal (per the original design), eliminates the need for an aftermarket adjustable panhard bar to recenter the axle, and, raises the roll center for improved handling.

Eimkeith PCK®s are designed to accommodate changes in static ride height or lift levels by providing multiple options for bar mounting.

Lift Heights guide:

• 50mm/2″ – use the lower hole on the axle bracket, stock hole on the frame side
• 75mm/3″ – use the upper hole on the axle bracket, stock hole on the frame
• 100mm/4″ – use the lower hole on the axle bracket and the new hole in the frame side bracket
• 125mm/5″ – use the upper hole on the axle bracket and the new hole in the frame side bracket

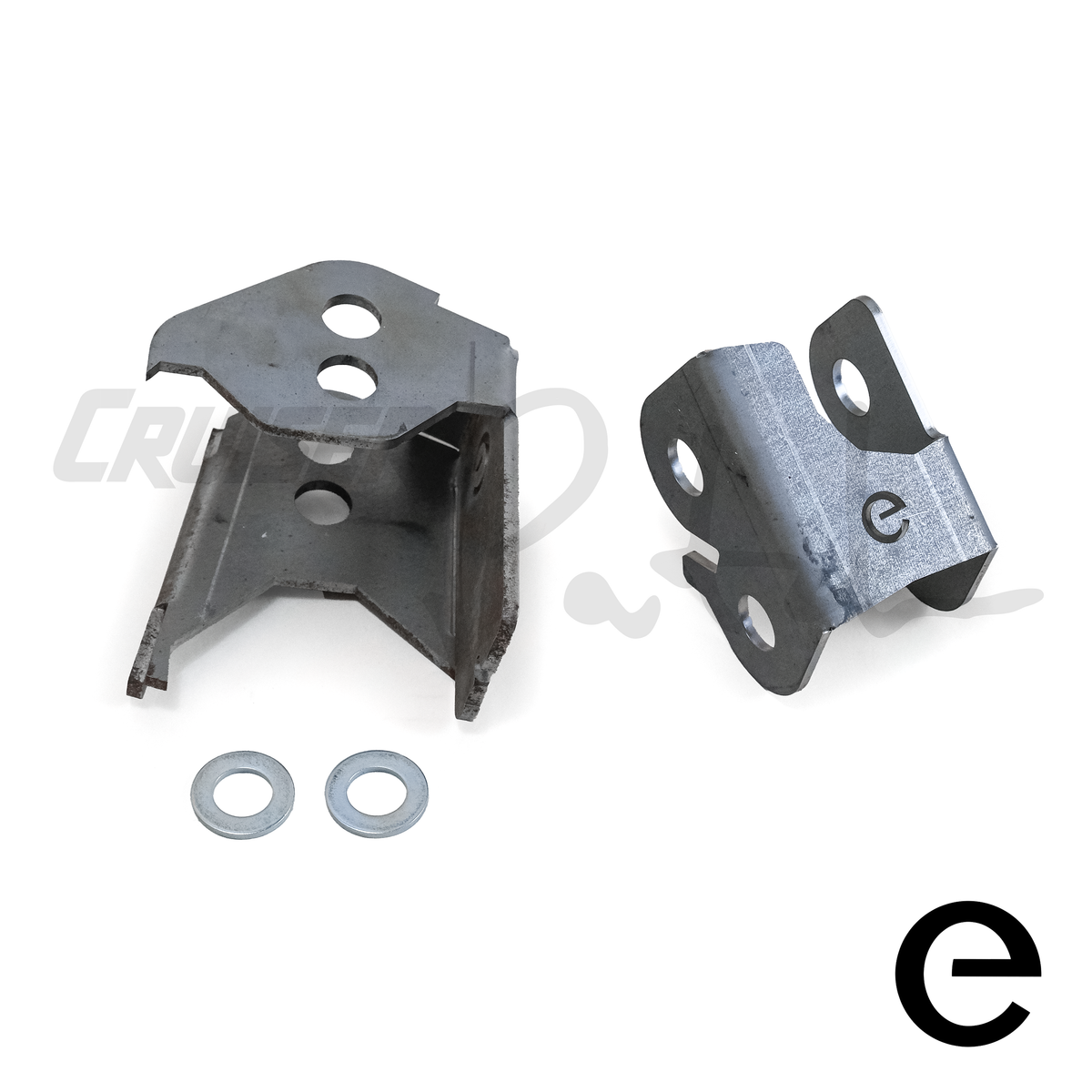

Includes:

• (1) Frame Side Drop Bracket
• (1) Axle Side Lift Bracket
• (1) eimkeith Logo sticker
• (1) Grade 10.9 hardware pack (nut, washers)

To order, you’ll need to know what axle is in your FJ80/FZJ80 to select the appropriate kit for your truck.

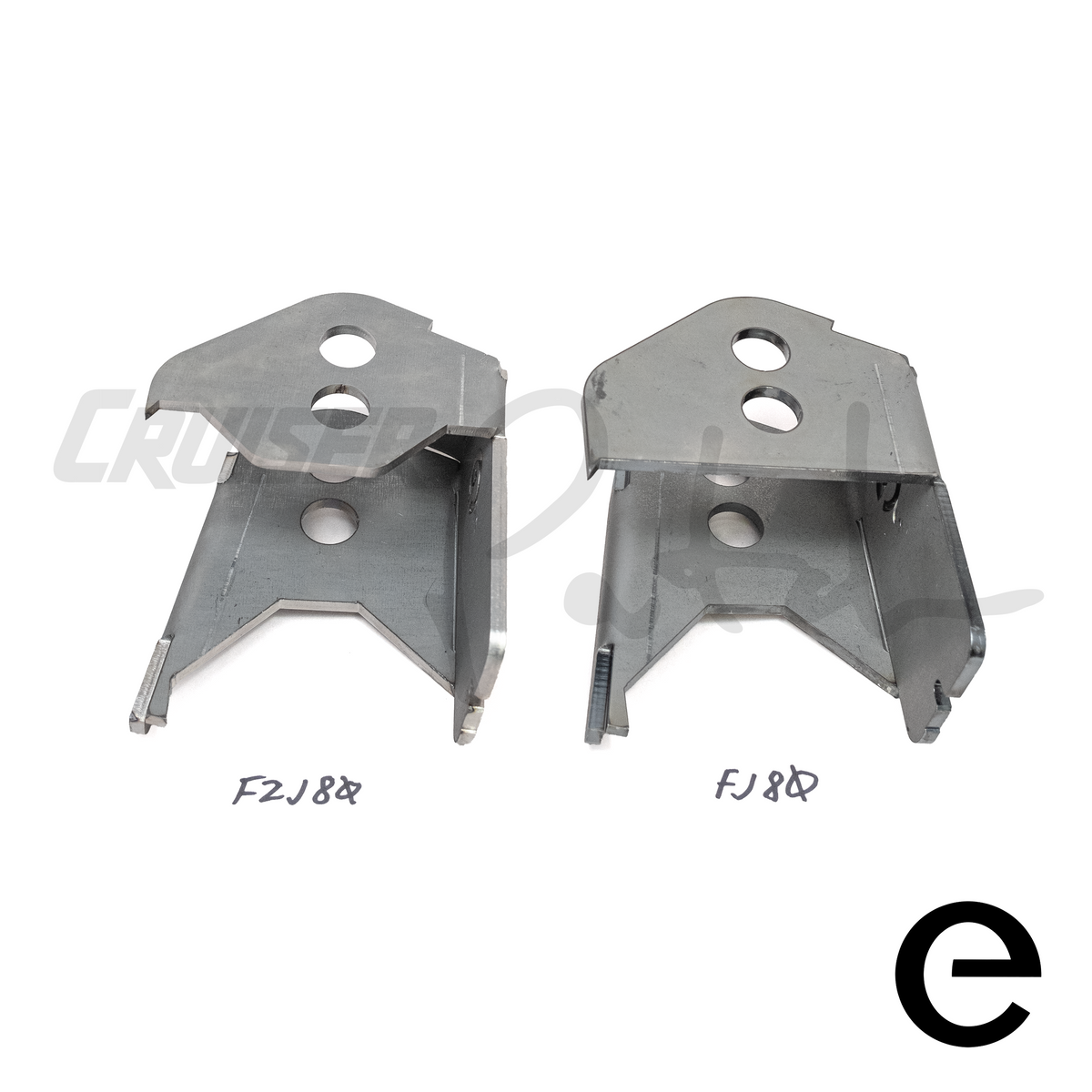

You will either have a panhard mount with a forward (toward the front of the truck) side that has a flat or V-shaped upper edge. Order the corresponding kit for your axle.

Fitment (FJ80):

01.1990-08.1992 Toyota Land Cruiser (FJ80)

Fitment (FZJ80):

08.1992-12.2006 Toyota Land Cruiser (FZJ80)

11.1995-01.1998 Lexus LX450

MADE IN USA
