OEM 100 Series Toyota Land Cruiser LX470 2UZ-FE 4.7L V8 Starter Motor Replacement Kit

$60 core charge refundable upon return of old starter assembly

Finally, a complete OEM kit for replacing the 100 Series 2UZ-FE starter motor. Some owners elect to replace the knock sensors 'while they're in there' and for that reason we've created a 2UZ-FE knock sensor refresh kit as well.

The following parts are recommended replacement items during the start motor replacement on the 2UZ-FE found in the 100 Series Toyota Land Cruiser and Lexus LX470 (as well as other Toyota/Lexus vehicles listed below):

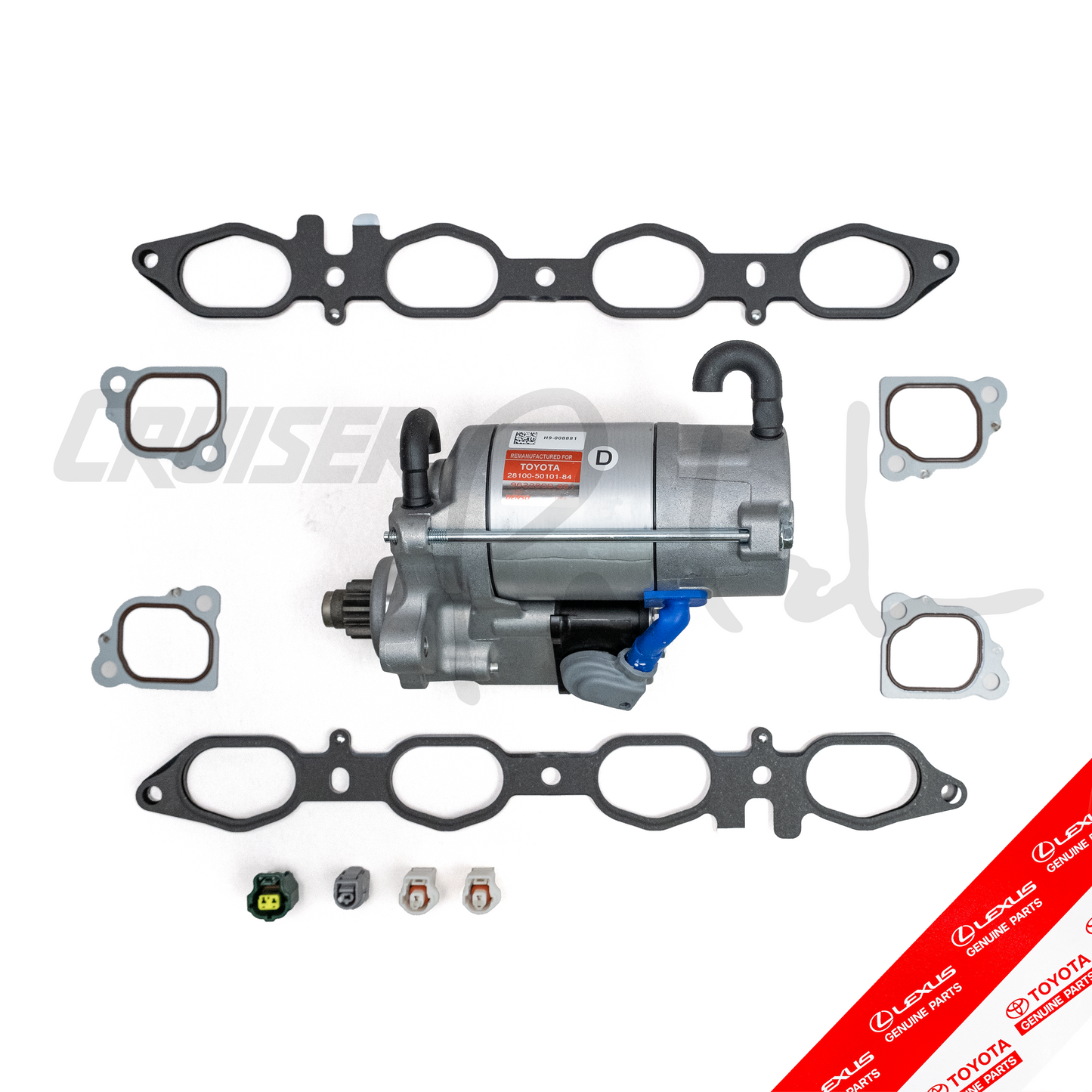

28100-50070 starter motor kit includes:

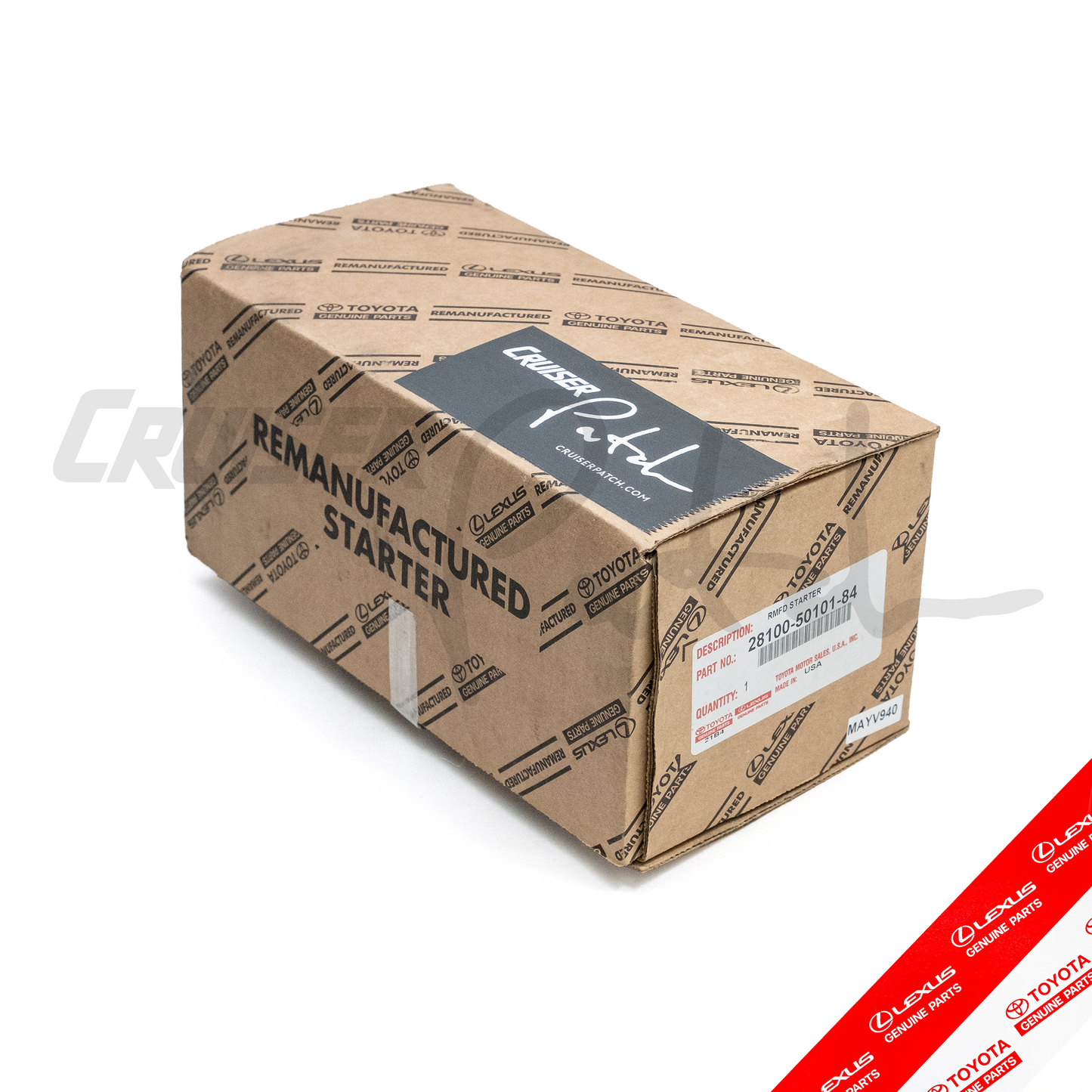

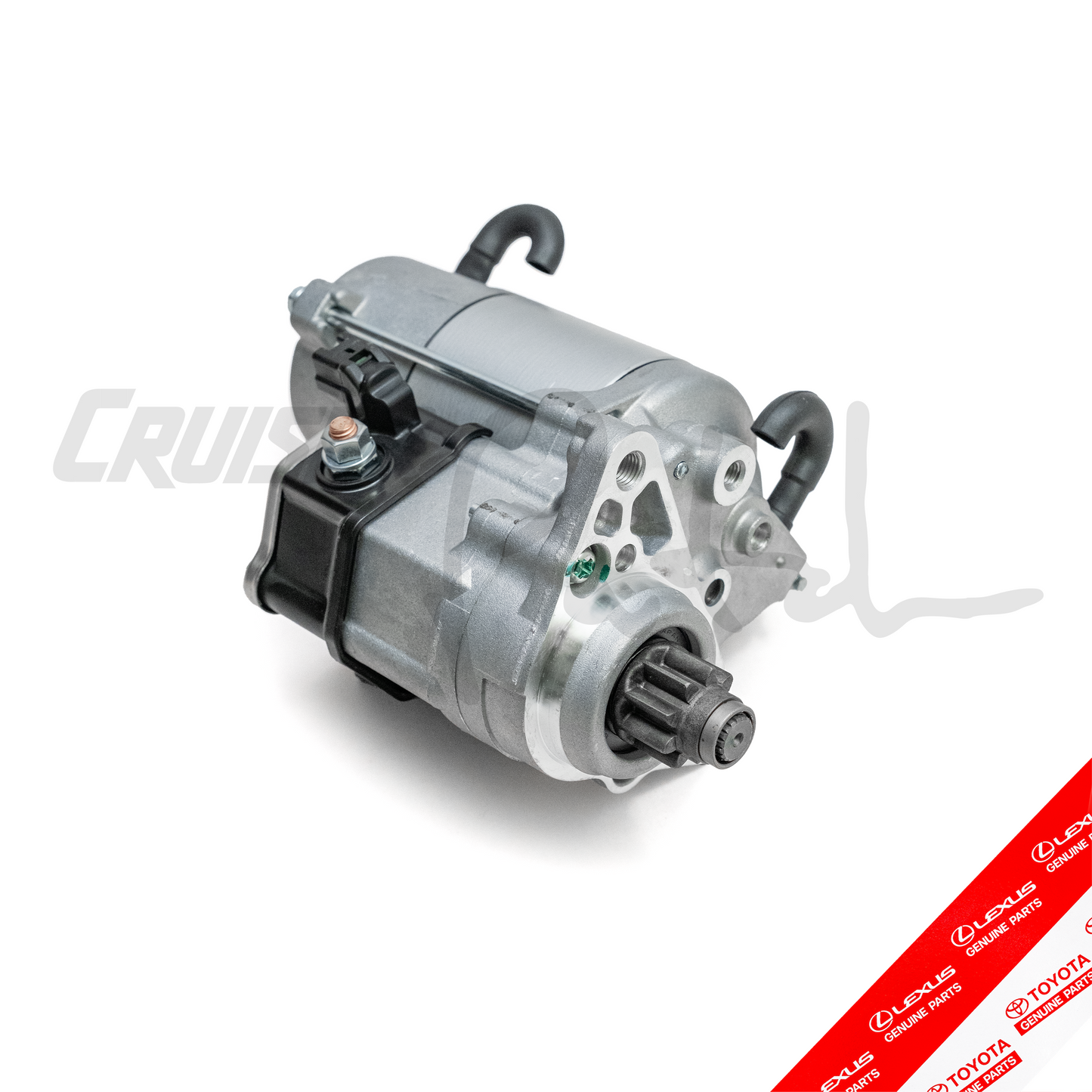

• Remanufactured OEM DENSO starter (1x): 28100-50070-84 (supersedes 28100-50070, 28100-50040, DENSO 280-0233)
• Starter connector (1x): 90980-11400
• Knock Sensor Connectors (2x): 90980-11166
• 2-pin coolant temp sender connector (1x): 90980-10737 (90980-11062)
• 1-pin cluster gauge temp sensor connector (1x): 90980-11428
• Engine Intake Manifold Gaskets (2x): 17171-50020
• Front & rear water bypass gaskets (4x): 16341-50020

• OEM bolt w/ washer (2x): 90119-10597 ( 90105-10244)
• $60 CORE charge*

28100-50101 starter motor kit includes:

• Remanufactured OEM DENSO starter (1x): 28100-50101-84 ( supersedes 28100-50101, 28100-50100, 28100-50091, DENSO 280-0320)
• Starter connector (1x): 90980-11400
• Knock Sensor Connectors (2x): 90980-11166
• 2-pin coolant temp sender connector (1x): 90980-10736

• Engine Intake Manifold Gaskets (2x): 17171-50020
• Front & rear water bypass gaskets (4x): 16341-50020

• OEM bolt w/ washer (2x): 90119-10597 ( 90105-10244)
• $60 CORE charge*

*CORE charge refunded upon return of dead starter motor. Please include extra parts if not needed

see also: 2UZ-FE Metal Heater Tee upgrade kit

Fitment details:

28100-50070 (DENSO 280-0233) were produced for 01.1998-03.2000 vehicles equipped with the 2UZ-FE motor

28100-50100 & 28100-50101 (DENSO 280-0320) were produced for 08.2002+ vehicles equipped with the 2UZ-FE motor

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100)
• 09.2007-12.2011 Toyota Land Cruiser (UZJ200)
• 01.1998-08.2007 Lexus LX470 (UZJ100)
• 08.2002-07.2009 Toyota 4Runner (4.7L V8)
• 11.2002-07.2009 Lexus GX470 (UZJ120)
• 02.1999-09.2006 Toyota Tundra (4.7L V8)
• 09.2000-10.2007 Toyota Sequoia (4.7L V8)

MADE IN JAPAN
